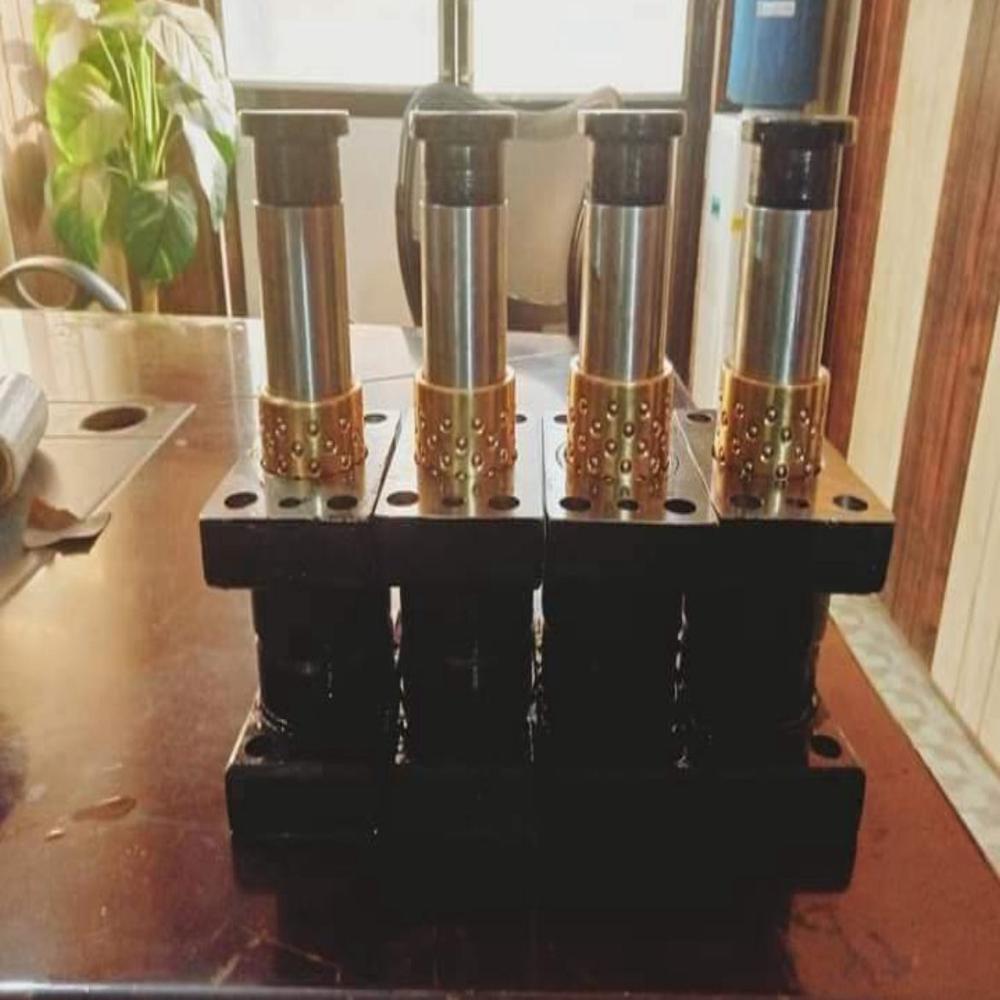

Guide post

Guide post Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

About Guide post

A press tool guide post is a critical component in die sets, providing precise alignment and guidance during the stamping or forming process. They ensure accurate and repeatable positioning of the punch and die, contributing to dimensional accuracy and surface finish of the final product. These posts are typically used in conjunction with guide bushings and are available in various types, including ball-bearing and plain (or solid) types, each offering different characteristics in terms of rigidity, speed, and lubrication requirements.

Types of Guide Posts:

Ball Guide Posts:

Utilize ball cages to provide a rolling action, offering high rigidity and accuracy, particularly in high-speed applications. Some ball guide posts feature high-rigidity designs with a greater number of balls for even greater stiffness.

Plain Guide Posts:

Rely on a sliding fit between the post and bushing, offering higher rigidity than ball guides but with potentially lower permissible speeds. These can be further categorized based on lubrication methods, including lubricated, non-lubricated (with MoS2), and copper alloy lubricated options.

Key Functions:

Precise Alignment:

Guide posts maintain the accurate alignment between the punch and die, preventing misalignment and ensuring consistent part production.

High Rigidity:

They provide the necessary stiffness to withstand the forces exerted during the pressing operation.

Guidance:

They guide the punch and die during the pressing motion, ensuring smooth and controlled movement.

Repeatability:

They contribute to the repeatability of the pressing process, leading to consistent part dimensions.

Durability:

They are designed to withstand wear and tear from repeated use, ensuring a long service life.

Materials and Considerations:

Guide posts are typically made from hardened steel to withstand the forces involved and resist wear.

Lubrication is crucial for plain guide posts to minimize friction and wear, with options including bearing oil and grease.

The choice between ball and plain guide posts depends on factors such as the required speed, rigidity, and lubrication requirements of the specific application.
